Images

Images of almost any type can be added to Slides.

Usage

// Image from remote URL
slide.addImage({ path: "https://upload.wikimedia.org/wikipedia/en/a/a9/Example.jpg" });

// Image by local URL
slide.addImage({ path: "images/chart_world_peace_near.png" });

// Image by data (pre-encoded base64)
slide.addImage({ data: "image/png;base64,iVtDafDrBF[...]=" });

Usage Notes

Either provide a URL location or base64 data to create an image.

• path - URL: relative or full
• data - base64: string representing an encoded image

Supported Formats and Notes

• Standard image types: png, jpg, gif, et al.
• Animated gifs: only shown animated on Microsoft 365/Office365 and the newest desktop versions, older versions will animate them in presentation mode only
• SVG images: supported in the newest version of desktop PowerPoint or Microsoft 365/Office365

Performance Considerations

It takes CPU time to read and encode images! The more images you include and the larger they are, the more time will be consumed.

• The time needed to read/encode images can be completely eliminated by pre-encoding any images
• Pre-encode images into a base64 strings and use the data option value instead
• This will both reduce dependencies (who needs another image asset to keep track of?) and provide a performance boost (no time will need to be consumed reading and encoding the image)

Base Properties

Position/Size Props (PositionProps)

Option	Type	Default	Description	Possible Values
x	number	1.0	hor location (inches)	0-n
x	string		hor location (percent)	'n%'. (Ex: {x:'50%'} middle of the Slide)
y	number	1.0	ver location (inches)	0-n
y	string		ver location (percent)	'n%'. (Ex: {y:'50%'} middle of the Slide)
w	number	1.0	width (inches)	0-n
w	string		width (percent)	'n%'. (Ex: {w:'50%'} 50% the Slide width)
h	number	1.0	height (inches)	0-n
h	string		height (percent)	'n%'. (Ex: {h:'50%'} 50% the Slide height)

Data/Path Props (DataOrPathProps)

Option	Type	Default	Description	Possible Values
data	string		image data (base64)	base64-encoded image string. (either data or path is required)
path	string		image path	Same as used in an (img src="") tag. (either data or path is required)

Image Props (ImageProps)

Option	Type	Default	Description	Possible Values
altText	string		alt text value	description of what image shows
flipH	boolean	false	Flip horizontally?	true, false
flipV	boolean	false	Flip vertical?	true, false
hyperlink	HyperlinkProps		add hyperlink	object with url or slide
placeholder	string		image placeholder	Placeholder location: title, body
rotate	integer	0	rotation (degrees)	Rotation degress: 0-359
rounding	boolean	false	image rounding	Shapes an image into a circle
sizing	object		transforms image	See Image Sizing
transparency	number	0	changes opacity of an image	0-100 where 0 means image is completely visible

Sizing Properties

The sizing option provides cropping and scaling an image to a specified area. The property expects an object with the following structure:

Property	Type	Unit	Default	Description	Possible Values
type	string			sizing algorithm	'crop', 'contain' or 'cover'
w	number	inches	w of the image	area width	0-n
h	number	inches	h of the image	area height	0-n
x	number	inches	0	area horizontal position related to the image	0-n (effective for crop only)
y	number	inches	0	area vertical position related to the image	0-n (effective for crop only)

Sizing Types

• contain works as CSS property background-size — shrinks the image (ratio preserved) to the area given by w and h so that the image is completely visible. If the area's ratio differs from the image ratio, an empty space will surround the image.
• cover works as CSS property background-size — shrinks the image (ratio preserved) to the area given by w and h so that the area is completely filled. If the area's ratio differs from the image ratio, the image is centered to the area and cropped.
• crop cuts off a part specified by image-related coordinates x, y and size w, h.

Sizing Notes

• If you specify an area size larger than the image for the contain and cover type, then the image will be stretched, not shrunken.
• In case of the crop option, if the specified area reaches out of the image, then the covered empty space will be a part of the image.
• When the sizing property is used, its w and h values represent the effective image size. For example, in the following snippet, width and height of the image will both equal to 2 inches and its top-left corner will be located at [1 inch, 1 inch]:

Shadow Properties (ShadowProps)

The ShadowProps property adds a shadow to an image.

Examples

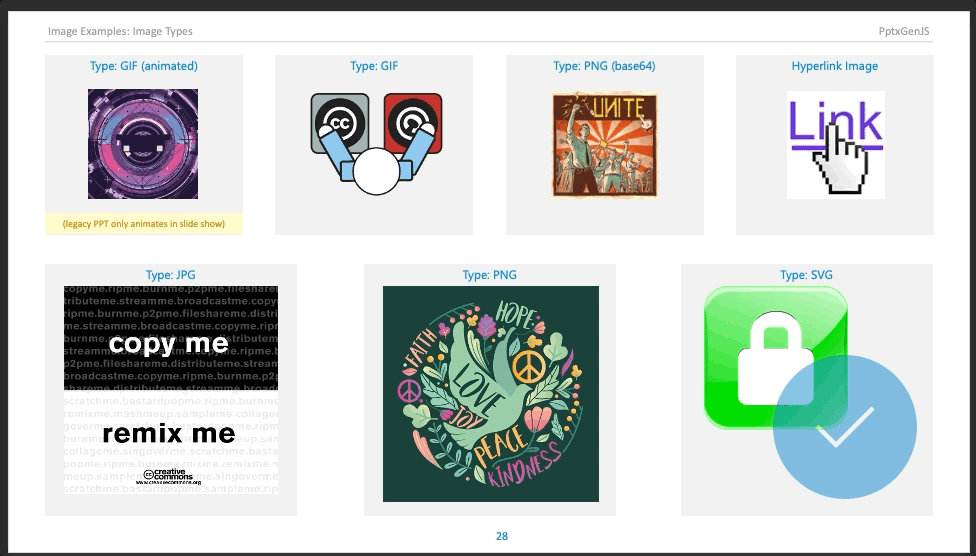

Image Types Examples

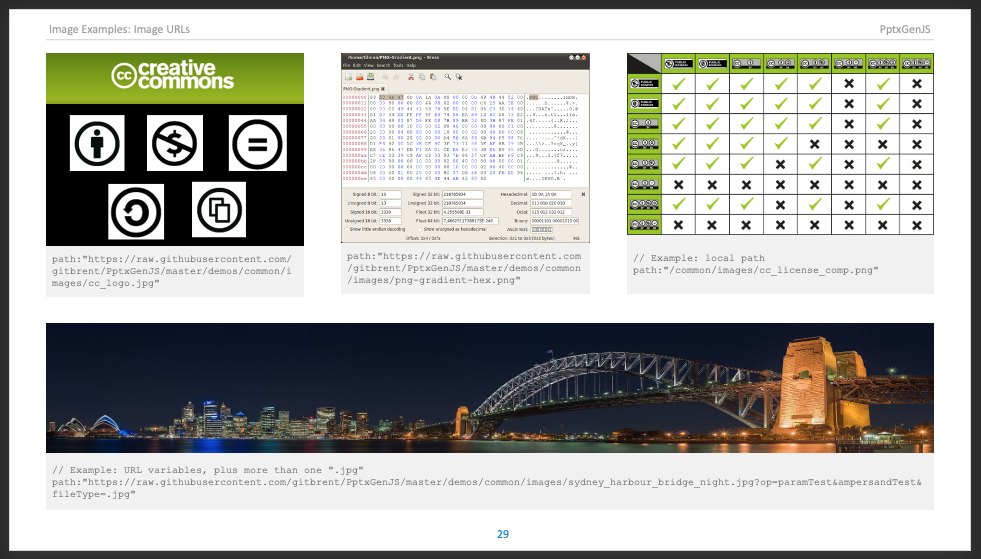

Data/Path Examples

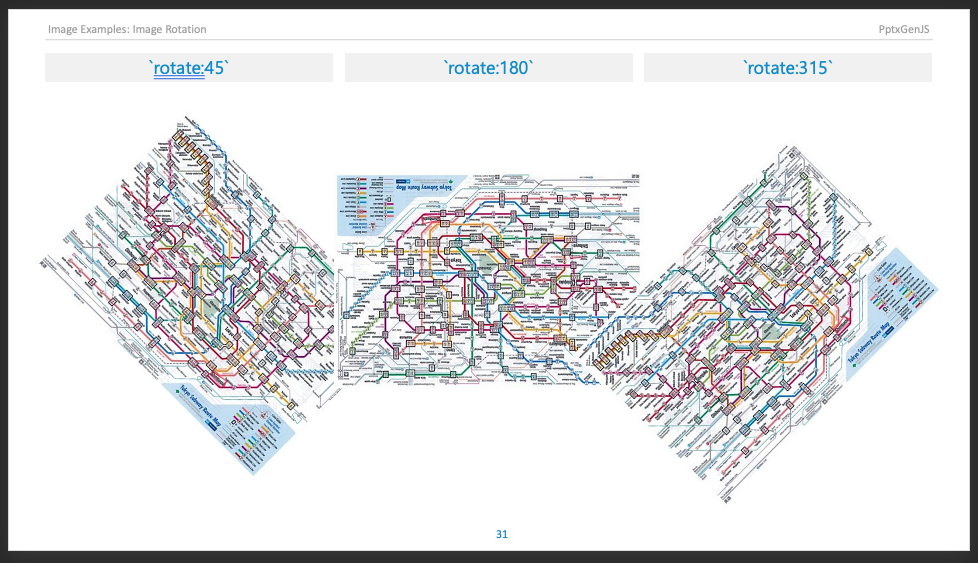

Rotate Examples

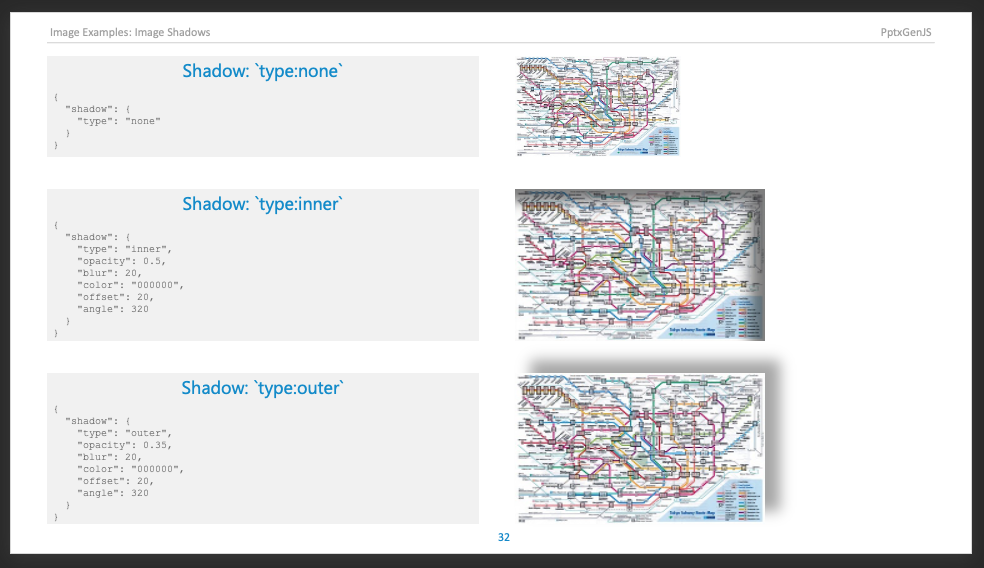

Shadow Examples

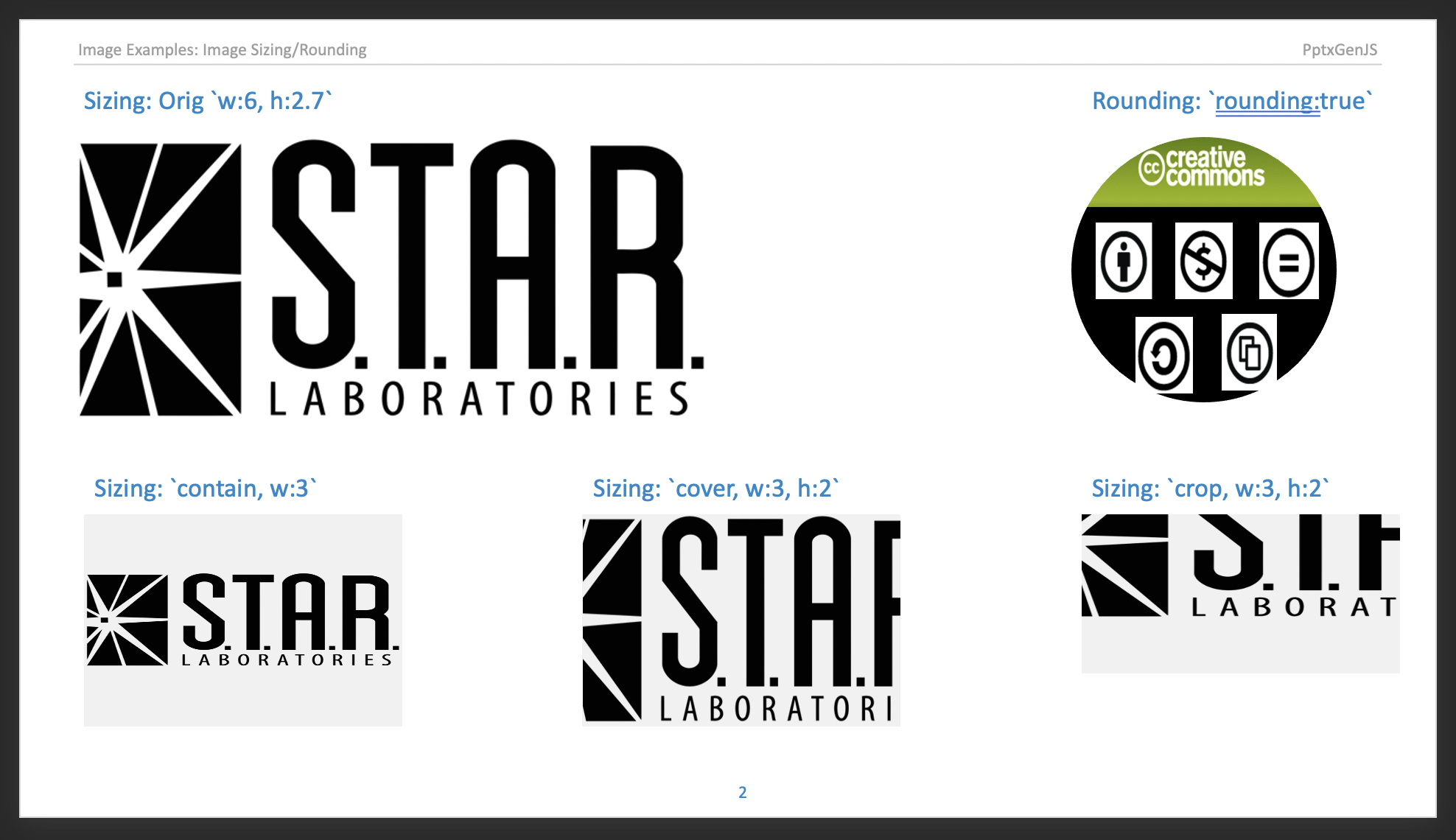

Sizing Examples

All Image Samples

All sample javascript code: demos/modules/demo_image.mjs
